STX13004

High voltage fast-switching NPN power transistor

STX13004 Features

* High voltage capability Low spread of dynamic parameters Minimum lot-to-lot spread for reliable operation Very high switching speed Applications

* SMPS for battery charger TO-92 TO-92AP Description The device is manufactured using high voltage multi epitaxial planar t

STX13004 General Description

The device is manufactured using high voltage multi epitaxial planar technology for high switching speeds and high voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The STX13004G and STX13004G-AP are su.

STX13004 Datasheet (351.95 KB)

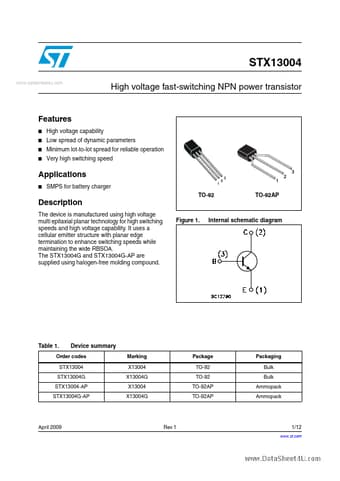

Preview of STX13004 PDF

Datasheet Details

Part number:

STX13004

Manufacturer:

STMicroelectronics ↗

File Size:

351.95 KB

Description:

High voltage fast-switching npn power transistor.
