STX690A

Transistors

STX690A Features

* Very low collector to emitter saturation voltage DC current gain, hFE > 100 3 A continuous collector current 40 V breakdown voltage V(BR)CER Applications

* Power management in portable equipment Voltage regulation in bias supply circuits Switching reg

STX690A General Description

The device is manufactured in low voltage NPN planar technology by using a “Base Island” layout. The resulting transistor shows exceptional high gain performance coupled with very low saturation voltage. Table 1. Device summary Marking X690A X690A Package TO-92 TO-92 AP Packaging Bulk Ammopack Or.

STX690A Datasheet (185.48 KB)

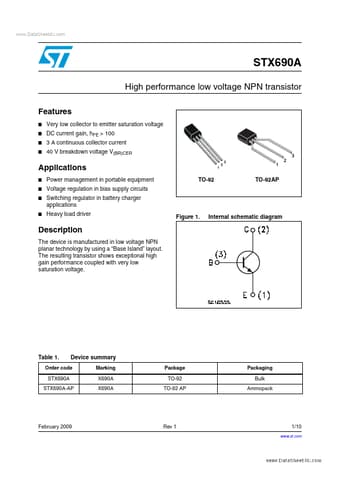

Preview of STX690A PDF

Datasheet Details
