STX13003 Datasheet - ST Microelectronics

HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

STX13003 General Description

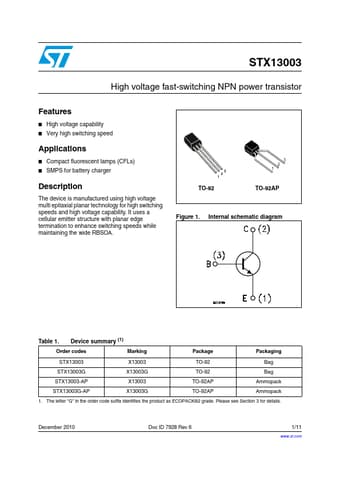

The device is manufactured using high voltage multi epitaxial planar technology for high switching speeds and high voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. TO-92 TO-92AP Figure 1. Internal s.

STX13003 Datasheet (278.33 KB)

Preview of STX13003 PDF

Datasheet Details

Part number:

STX13003

Manufacturer:

STMicroelectronics ↗

File Size:

278.33 KB

Description:

High voltage fast-switching npn power transistor.
