STX13005G-AP, STX13005 HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

STMicroelectronics

Description

STX13005 High voltage fast-switching NPN power transistor .
The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and medium voltage capability.

📥 Download Datasheet

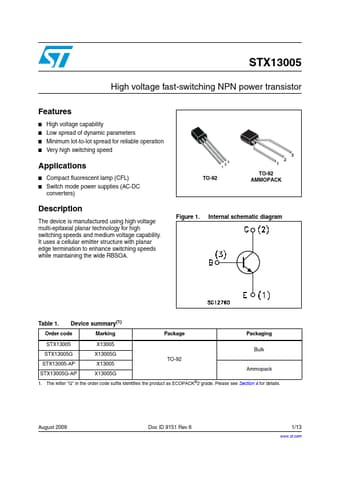

STX13005G-AP Datasheet Preview — This datasheet PDF includes multiple part numbers: STX13005G-AP, STX13005. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STX13005G-AP, STX13005
Manufacturer: STMicroelectronics ↗
File Size: 272.99 KB
Datasheet: STX13005_STMicroelectronics.pdf
Description: HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR
Note: This datasheet PDF includes multiple part numbers: STX13005G-AP, STX13005.
Please refer to the document for exact specifications by model.

Features

* High voltage capability
* Low spread of dynamic parameters
* Minimum lot-to-lot spread for reliable operation

Applications

* Compact fluorescent lamp (CFL)
