STX13005-AP

HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR

STX13005-AP Features

* High voltage capability

* Low spread of dynamic parameters

* Minimum lot-to-lot spread for reliable operation

* Very high switching speed Applications

* Compact fluorescent lamp (CFL)

* Switch mode power supplies (AC-DC converters) Description The device is manufactured usi

STX13005-AP General Description

The device is manufactured using high voltage multi-epitaxial planar technology for high switching speeds and medium voltage capability. It uses a cellular emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. TO-92 TO-92 AMMOPACK Figure 1. I.

STX13005-AP Datasheet (272.99 KB)

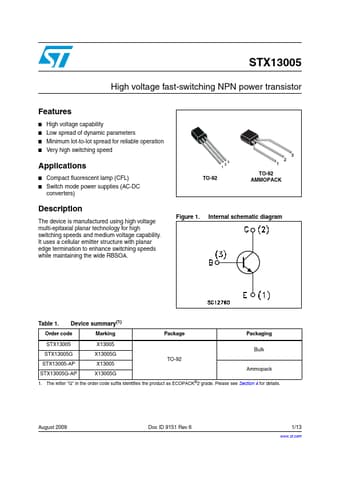

Preview of STX13005-AP PDF

Datasheet Details

Part number:

STX13005-AP

Manufacturer:

STMicroelectronics ↗

File Size:

272.99 KB

Description:

High voltage fast-switching npn power transistor.
