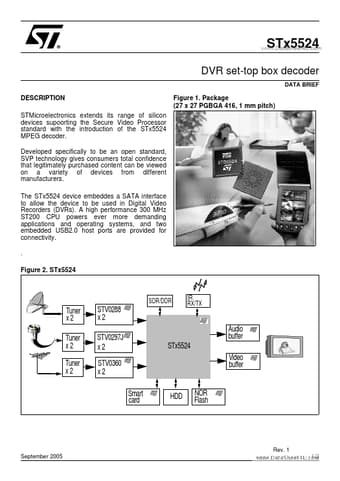

datasheet Preview Page 1 from Datasheet4u.com

STx5524 DVR set-top box decoder

www.DataSheet4U.com STx5524 DVR set-top box decoder DATA BRIEF .
STMicroelectronics extends its range of silicon devices supoorting the Secure Video Processor standard with the introduction of the STx5524 MPEG decod.

STx5524_STMicroelectronics.pdf

STx5524 Datasheet Preview — Preview of STx5524 PDF

Datasheet Details

Part number:

STx5524

Manufacturer:

STMicroelectronics ↗

File Size:

254.56 KB

Description:

DVR set-top box decoder

Features

* n ST231 multi-issue host CPU
* 300 MHz
* 32 Kbyte ICache, 32 Kbite DCache
* MMU processor n n n n Dual MPEG-2 MP@ML video decoder
* Smooth fastforward and rewind trickmodes www. DataSheet4U. com n Dual TV output
* PAL/NTSC/SECAM encoders Blitter based graphic

Applications

* and operating systems, and two embedded USB2.0 host ports are provided for connectivity. . Figure 2. STx5524 Figure 1. Package (27 x 27 PGBGA 416, 1 mm pitch) xxxx SDR/DDR Tuner x2 Tuner x2 Tuner x2 STV0288 x2 STV0297J x2 STV0360 x2 Smart card HDD IR RX/TX Audio buffer STx5524 Video buffer N
