SZ5806, SZ5706, ZENER DIODES

Solid State Devices, Inc.

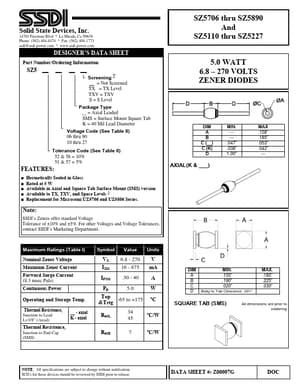

14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com DESIGNER’S DATA SHEET Part Number/Ordering Information SZ5 __ __ __ __ │ │ │ └ Screening 7/ │││ __ = Not Screened │ │ │ TX = TX Level │ │ │ TXV = TXV │││ S = S Level │ │ └ Package Type ││ __ = Axial Leaded ││ SMS = Surface Mount Square Tab │ │ │ │ │ │ └ K = 40 Mil Lead Diameter Voltage Code (See Table II) 06 thru 9

SZ5806 Features

* Hermetically Sealed in Glass

* Rated at 5 W

* Available in Axial and Square Tab Surface Mount (SMS) version

* Available to TX, TXV, and Space Levels 7/

* Replacement for Microsemi UZ5706 and UZ5806 Series. Note: SSDI’s Zeners offer standard Voltage Tolerance of ±10% and ±5%.
