SZ5809 - ZENER DIODES

Product Overview

SSDI

Part number	SZ5809
Manufacturer	SSDI
File Size	111.14 KB
Description	ZENER DIODES
Datasheet	SZ5809 Datasheet
Note	This datasheet PDF includes multiple part numbers: SZ5809, SZ5706. Please refer to the document for exact specifications by model.

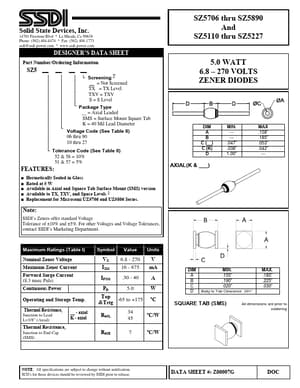

Additional preview pages of the SZ5809 datasheet.

Hermetically Sealed in Glass.
Rated at 5 W.
Available in Axial and Square Tab Surface Mount (SMS) version.
Available to TX, TXV, and Space Levels 7/.
Replacement for Microsemi UZ5706 and UZ5806 Series. Note: SSDI’s Zeners offer standard Voltage Tolerance of ±10% and ±5%. For other Voltages and Voltage Tolerances, contact SSDI’s Marketing Department. SZ5706 thru SZ5890 And SZ5110 thru SZ5227 5.0 WATT 6.8.
270 VOLTS ZENER DIODES DIM A B C (__) C (K) D AXIAL(.
