2N2484HR

High reliability NPN transistor

2N2484HR Features

* Vceo IC(max.) 60 V

* Hermetic packages

* ESCC qualified 0.5 A HFE at 10 V, 150 mA > 250 Tj(max.) 200 °C Description The 2N2484HR is a bipolar transistor able to operate under severe environment conditions. Qualified as per ESCC 5201/001 specification and available in LCC-3 an

2N2484HR General Description

The 2N2484HR is a bipolar transistor able to operate under severe environment conditions. Qualified as per ESCC 5201/001 specification and available in LCC-3 and UB hermetic packages, it is specifically recommended for space and harsh environment applications and suitable for low current and high p.

2N2484HR Datasheet (414.79 KB)

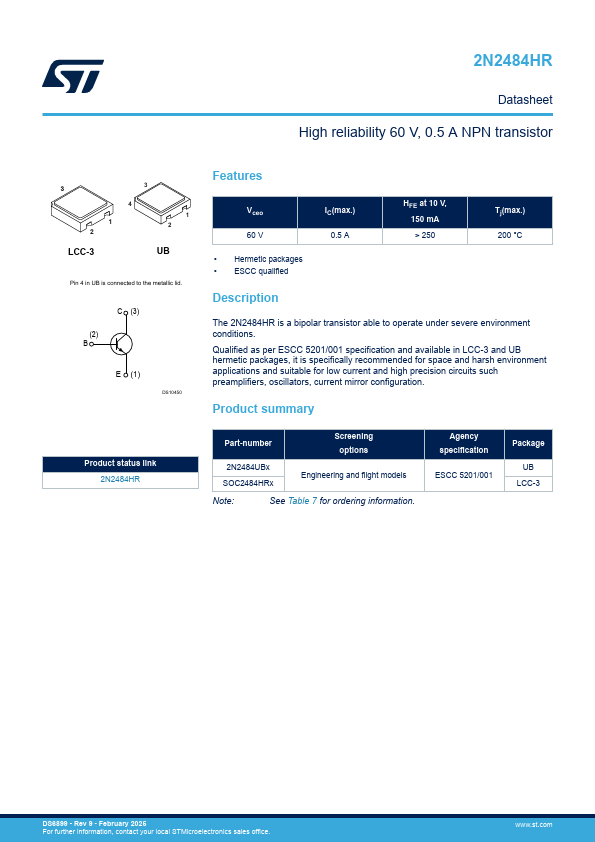

Preview of 2N2484HR PDF

Datasheet Details

Part number:

2N2484HR

Manufacturer:

STMicroelectronics ↗

File Size:

414.79 KB

Description:

High reliability npn transistor.
2N2484HR Datasheet High reliability 60 V, 0.5 A NPN transistor 3 1 2 LCC-3 3 4 1 2 UB Pin 4 in UB is connected to the metallic lid. C (3) (2) B .

📁 Related Datasheet

2N2484 - NPN SILICON AMPLIFIER TRANSISTOR (Seme LAB)
SEME LAB MECHANICAL DATA Dimensions in mm (inches) 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) 2N2484 NPN SILICON AMPLIFIER TRANSISTOR FEATUR.

2N2484 - NPN SILICON TRANSISTOR (Central Semiconductor)
2N2484 NPN SILICON TRANSISTOR w w w. c e n t r a l s e m i . c o m DESCRIPTION: The CENTRAL SEMICONDUCTOR 2N2484 type is an NPN silicon transistor de.

2N2484 - NPN Transistor (SGS-ATES)
.

2N2484 - NPN general purpose transistor (Philips)
DISCRETE SEMICONDUCTORS DATA SHEET M3D125 2N2484 NPN general purpose transistor Product specification Supersedes data of September 1994 File under D.

2N2484 - NPN SILICON LOW POWER TRANSISTOR (Microsemi)
TECHNICAL DATA NPN SILICON LOW POWER TRANSISTOR Qualified per MIL-PRF-19500/376 Devices 2N2484 Qualified Level JANTX JANTXV MAXIMUM RATINGS Ratings C.

2N2484 - SILICON PLANAR EPITAXIAL TRANSISTORS (Comset Semiconductor)
NPN 2N2484 SILICON PLANAR EPITAXIAL TRANSISTORS The 2N2484 are a silicon planar epitaxial NPN transistors mounted in TO-18 metal package. They are int.

2N2484 - AMPLIFIER TRANSISTOR (Motorola)
MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage —Collector Current Continuous Total Device Dissipation (2.

2N2484 - NPN Bipolar Transistor (Multicomp)
NPN Bipolar Transistor Features: • Collector Emitter Breakdown Voltage • DC Current Gain • Current Gain Bandwidth Product • Low Noise Figure : BVCEO.

TAGS

2N2484HR High reliability NPN transistor ST Microelectronics

Image Gallery

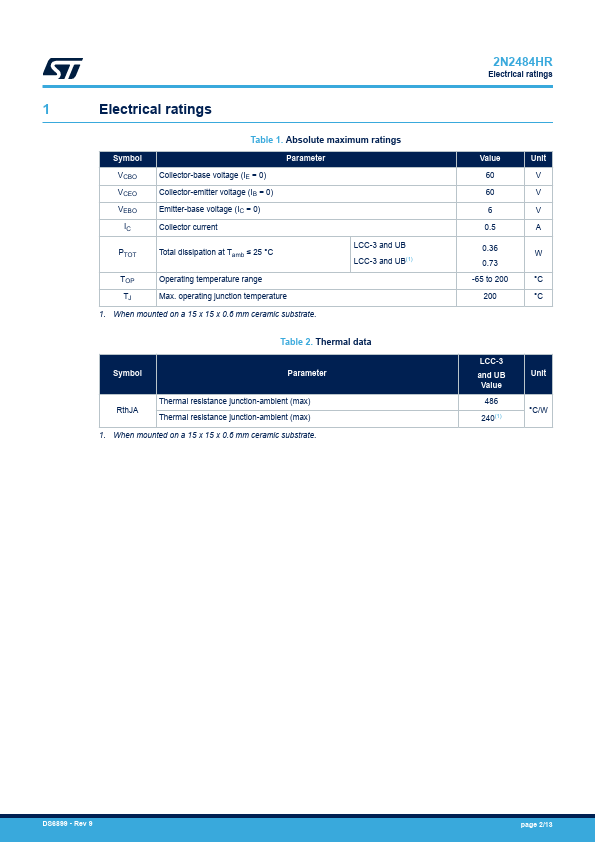

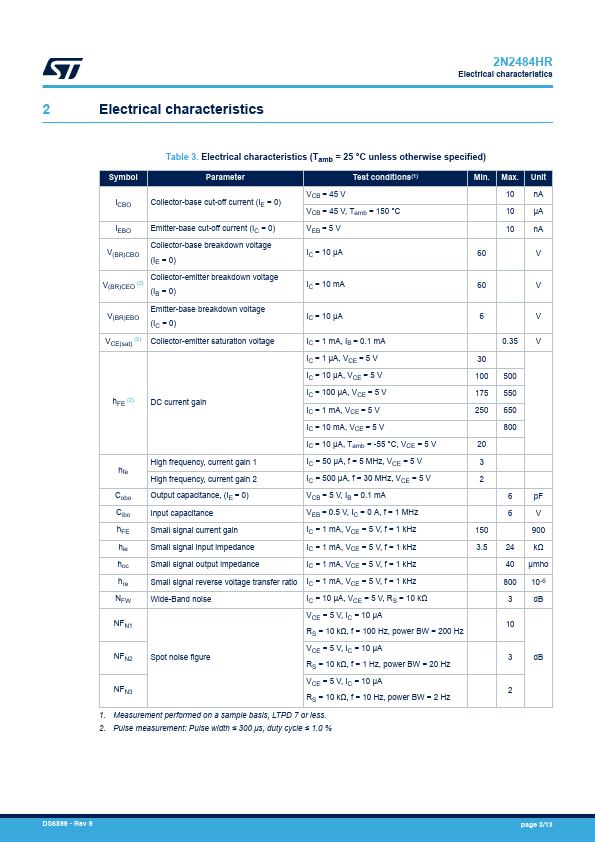

2N2484HR Datasheet Preview Page 2 2N2484HR Datasheet Preview Page 3
