2N2907A - SMALL SIGNAL PNP TRANSISTORS

Description

The 2N2905A and 2N2907A are silicon planar epitaxial PNP transistors in Jedec TO-39 (for 2N2905A) and in Jedec TO-18 (for 2N2907A) metal case.

They are designed for high speed saturated switching and general purpose applications.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2N2907A PNP switching transistors NXP
2N2907A Radiation Hardened PNP Transistors VPT
2N2907A Transistors Diotec
2N2907A PNP TRANSISTOR Microsemi Corporation
2N2907A HIGH SPEED MEDIUM POWER PNP TRANSISTOR Seme LAB

Other Datasheets by STMicroelectronics

Part Number Description
2N2484HR High reliability 60V 0.5A NPN transistor

Full PDF Text Transcription

Click to expand full text

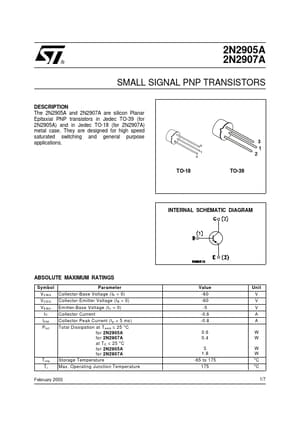

2N2905A 2N2907A GENERAL PURPOSE AMPLIFIERS AND SWITCHES DESCRIPTION The 2N2905A and 2N2907A are silicon planar epitaxial PNP transistors in Jedec TO-39 (for 2N2905A) and in Jedec TO-18 (for 2N2907A) metal case. They are designed for high speed saturated switching and general purpose applications. 2N2905A approved to CECC 50002-100, 2N2906A approved to CECC 50002-103 available on request. TO-18 TO-39 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC P t ot Parameter Collector-Base Voltage (IE = 0) Collector-Emitter Voltage (I B = 0) Emitter-Base Voltage (I C = 0) Collector Current Total Dissipation at T amb ≤ 25 C for 2N2905A for 2N2907A at T case ≤ 25 o C for 2N2905A for 2N2907A St orage Temperature Max. Operating Junction Temperature o Value -60 -60 -5 -0.
