L6563A

Advanced transition-mode PFC controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics L6563A IC PFC CTRLR TRANSITION 14SO DigiKey 341 5000 units
$0.62

L6563A Datasheet (687.99 KB)

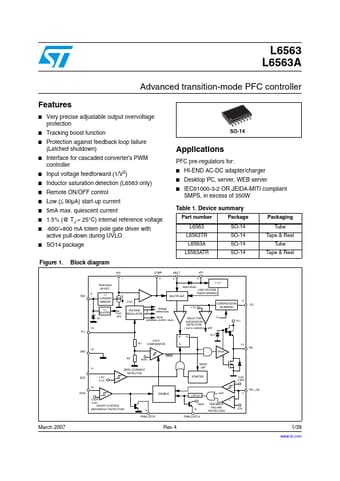

Preview of L6563A PDF

Datasheet Details

Part number:

L6563A

Manufacturer:

STMicroelectronics ↗

File Size:

687.99 KB

Description:

Advanced transition-mode pfc controller.

L6563A Features

* Very precise adjustable output overvoltage protection

* Tracking boost function

* Protection against feedback loop failure (Latched shutdown)

* Interface for cascaded converter's PWM controller

* Input voltage feedforward (1/V2)

* Inductor saturation detection (L6563 only)

L6563A General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.1 Pin connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 1.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..
