L6562AT - Transition-mode PFC controller

Product Overview

STMicroelectronics

📥 Download Datasheet

L6562AT Transition-mode PFC controller by STMicroelectronics - Datasheet Preview — Datasheet preview – L6562AT

Datasheet Details

Part number	L6562AT
Manufacturer	STMicroelectronics
File Size	458.18 KB
Description	Transition-mode PFC controller
Datasheet	L6562AT Datasheet
Additional preview pages of the L6562AT datasheet.

Product details

Description

.

Features

Guaranteed for extreme temperature range (outdoor).
Proprietary multiplier design for minimum THD.
Very accurate adjustable output overvoltage protection.
Ultra-low (30 μA) start-up current.
Low (2.5 mA) quiescent current.
Digital leading-edge blanking on current sense.
Disable function on E/A input.
1% (@ TJ = 25 °C) internal reference voltage.

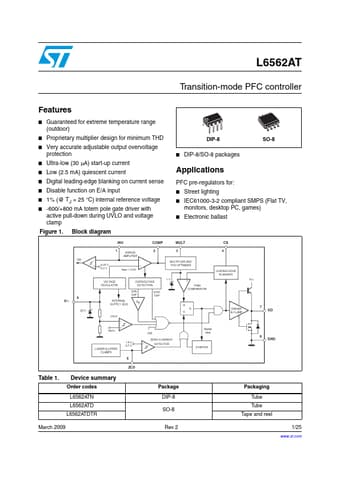

-600/+800 mA totem pole gate driver with active pull-down during UVLO and voltage clamp Figure 1. Block di.
