M39208 Single Chip 2 Mbit Flash and 64 Kbit Parallel EEPROM Memory

The M39208 is a memory device combining Flash and EEPROM into a single chip and using single supply voltage. The memory is mapped in two blocks: 2 Mbit of Flash memory and 64 Kbit of EEPROM memory. Each space is independant for writing, in concurrent mode the Flash Memory can be read while the EEPRO.

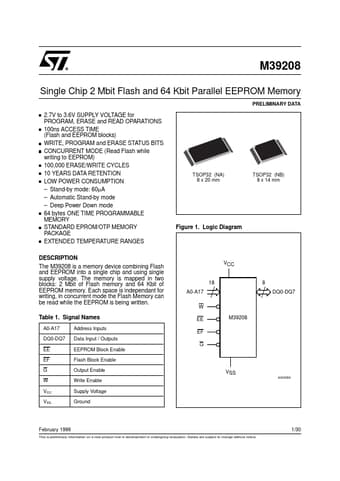

M39208 Single Chip 2 Mbit Flash and 64 Kbit Parallel EEPROM Memory PRELIMINARY DATA 2.7V to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPARATIONS 100ns ACCESS TIME (Flash and EEPROM blocks) WRITE, PROGRAM and ERASE STATUS BITS CONCURRENT MODE (Read Flash while writing to EEPROM) 100,000 ERASE/WRITE CYCLES 10 YEARS DATA RETENTION LOW POWER CONSUMPTION Stand-by mode: 60µA Automatic Stand-by mode Deep Power Down mode 64 bytes ONE TIME PROGRAMMABLE MEMORY STANDARD.

M39208 Features

* anufacturer identifier, Read the Flash block identifier These instructions are detailed in Table 4. For efficient decoding of the instruction, the two first bytes of an instr
