M39832 Single Chip 8 Mbit 1Mb x8 or 512Kb x16 Flash and 256 Kbit Parallel EEPROM Memory

The M39832 is a memory device combining Flash and EEPROM into a single chip and using single supply voltage. The memory is mapped in two arrays: 8 Mbit of Flash memory and 256 Kbit of EEPROM memory. Each space is independant for writing, in concurrent mode the Flash Memory can be read while the EEPR.

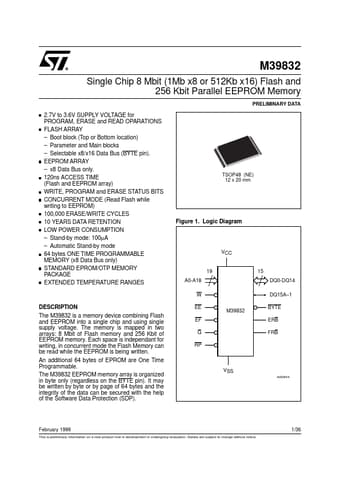

M39832 Single Chip 8 Mbit (1Mb x8 or 512Kb x16) Flash and 256 Kbit Parallel EEPROM Memory PRELIMINARY DATA 2.7V to 3.6V SUPPLY VOLTAGE for PROGRAM, ERASE and READ OPARATIONS FLASH ARRAY Boot block (Top or Bottom location) Parameter and Main blocks Selectable x8/x16 Data Bus (BYTE pin). EEPROM ARRAY x8 Data Bus only. 120ns ACCESS TIME (Flash and EEPROM array) WRITE, PROGRAM and ERASE STATUS BITS CONCURRENT MODE (Read Flash while writing to EEPROM) 100,000 .

M39832 Features

* K F0000h Word-Wide 7FFFFh 7E000h 7DFFFh 7D000h 7CFFFh 7C000h 7BFFFh 78000h 4/36 M39832 Figure 3B. Bottom Boot Block Memory Map an
