M54HC241 OCTAL BUS BUFFER

The M54/74HC240, HC241 and HC244 are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. The designer has a choise of select combination of inverting and non-inverting outputs.

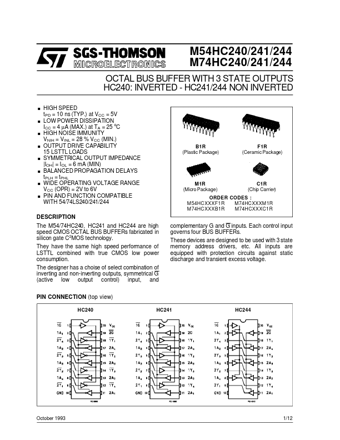

M54HC240/241/244 M74HC240/241/244 OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HC240: INVERTED - HC241/244 NON INVERTED . . . . . . . . HIGH SPEED tPD = 10 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION o ICC = 4 µA (MAX.) at TA = 25 C HIGH NOISE IMMUNITY VNIH = VINL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2V to 6V PIN AND FUNCTION COMPATIBLE WITH 54/74L.
