M54HC243 Datasheet (ST Microelectronics)

M54HC243 - QUAD BUS TRANSCEIVER

The M54/74HC242/243 are high speed CMOS QUAD BUS TRANSCEIVER (3-STATE) FABRICATED IN SILICON GATE C2MOS technology.

They have the same high speed performance of LSTTL combined with true CMOS low power consumption.

The HC242/243 are 3 STATE bi-directional inverting and non-inverting buffers and are i

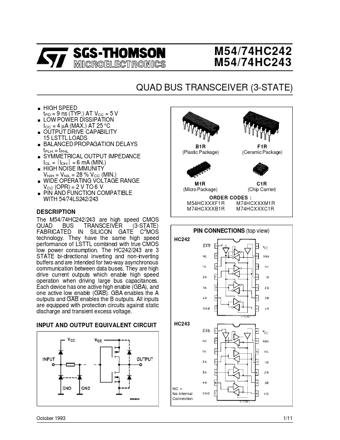

M54/74HC242 M54/74HC243 QUAD BUS TRANSCEIVER (3-STATE) .

HIGH SPEED tPD = 9 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT 25 °C OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS BALANCED PROPAGATION DELAYS tPLH = tPHL SYMMETRICAL OUTPUT IMPEDANCE IOL = IOH = 6 mA (MIN.) HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS242/243 B1R (Plastic Package) F1R (Ceramic Package) M1R (
