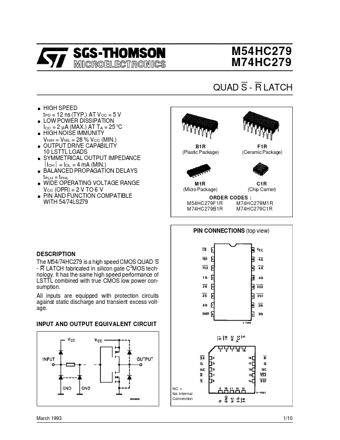

M54HC279 QUAD S-R LATCH

The M54/74HC279 is a high speed CMOS QUAD S - R LATCH fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. All inputs are equipped with protection circuits against static discharge and transient excess voltage. IN.

M54HC279 M74HC279 QUAD S - R LATCH . . . . . . . . HIGH SPEED tPD = 12 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 2 µA (MAX.) AT TA = 25 °C HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE IOH = IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V PIN AND FUNCTION COMPATIBLE WITH 54/74LS279 B1R (Plastic Package) F1R (Ceramic Package) M1R (Micro Package) C1.
