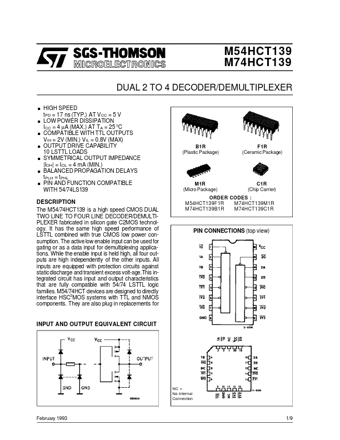

M54HCT139 Datasheet - ST Microelectronics

M54HCT139 DUAL 2 TO 4 DECODER/DEMULTIPLEXER

The M54/74HCT139 is a high speed CMOS DUAL TWO LINE TO FOUR LINE DECODER/DEMULTIPLEXER fabricated in silicon gate C2MOS technology. It has the same high speed performance of LSTTL combined with true CMOS low power consumption. The active low enable input can be used for gating or as a data input for.

M54HCT139 M74HCT139 DUAL 2 TO 4 DECODER/DEMULTIPLEXER . . . . . . . HIGH SPEED tPD = 17 ns (TYP.) AT VCC = 5 V LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C COMPATIBLE WITH TTL OUTPUTS VIH = 2V (MIN.) VIL = 0.8V (MAX) OUTPUT DRIVE CAPABILITY 10 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 4 mA (MIN.) BALANCED PROPAGATION DELAYS tPLH = tPHL PIN AND FUNCTION COMPATIBLE WITH 54/74LS139 B1R (Plastic Package) F1R (Ceramic Package) M1R (Micro Package) C1R (Chip Carrier) DESCRI.
