M54HCT240 OCTAL BUS BUFFER

The M54/74HCT240, HCT241 and HCT244 are high speed CMOS OCTAL BUS BUFFERs fabricated in silicon gate C2MOS technology. They have the same high speed performance of LSTTL combined with true CMOS low power consumption. The designer has a choise of select combination of inverting and non-inverting outp.

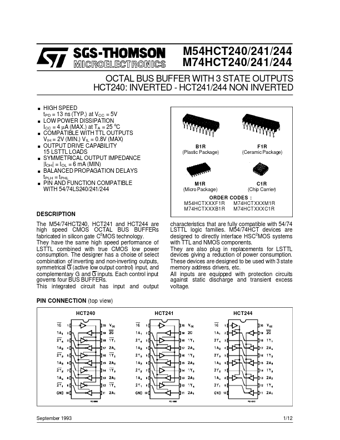

M54HCT240/241/244 M74HCT240/241/244 OCTAL BUS BUFFER WITH 3 STATE OUTPUTS HCT240: INVERTED - HCT241/244 NON INVERTED . . . . . . . HIGH SPEED tPD = 13 ns (TYP.) at VCC = 5V LOW POWER DISSIPATION o ICC = 4 µA (MAX.) at TA = 25 C COMPATIBLE WITH TTL OUTPUTS VIH = 2V (MIN.) VIL = 0.8V (MAX) OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN) BALANCED PROPAGATION DELAYS tPLH = tPHL PIN AND FUNCTION COMPATIBLE WITH 54/74LS240/241/244 B1R (Plastic Package) .
