M58BW016BT

16 Mbit 512Kb x32 / Boot Block / Burst 3V Supply Flash Memories

M58BW016BT Features

* SUMMARY s SUPPLY VOLTAGE

* VDD = 2.7V to 3.6V for Program, Erase and Read

* VDDQ = VDDQIN = 2.4V to 3.6V for I/O Buffers

* VPP = 12V for fast Program (optional) s Figure 1. Packages HIGH PERFORMANCE

* Access Time: 80, 90 and 100ns

* 56MHz Effective Zero Wait

M58BW016BT General Description

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 2. Logic Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . Table 1. Signal Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Figure 3. LBGA Conne.

M58BW016BT Datasheet (895.86 KB)

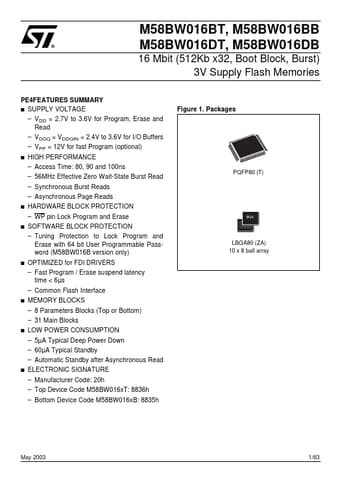

Preview of M58BW016BT PDF

Datasheet Details

Part number:

M58BW016BT

Manufacturer:

STMicroelectronics ↗

File Size:

895.86 KB

Description:

16 mbit 512kb x32 / boot block / burst 3v supply flash memories.
