NAND02G-B, NAND04G-B, (NAND0xG-B) NAND Flash Memory

NAND01G-B, NAND02G-B, NAND04G-B, NAND08G-B 1 Gbit, 2 Gbit, 4 Gbit, 8 Gbit 2112 Byte/1056 Word Page, 1.8V/3V, NAND Flash Memory PRELIMINARY DATA FEATU.

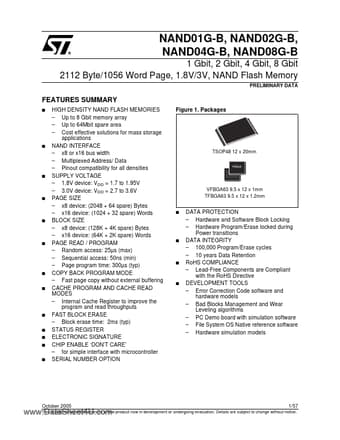

datasheet Preview Page 1 from Datasheet4u.com

NAND04G-B_STMicroelectronics.pdf

NAND02G-B Datasheet Preview — This datasheet PDF includes multiple part numbers: NAND02G-B, NAND04G-B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

NAND02G-B, NAND04G-B

Manufacturer:

STMicroelectronics ↗

File Size:

774.19 KB

Description:

(NAND0xG-B) NAND Flash Memory

Note:

This datasheet PDF includes multiple part numbers: NAND02G-B, NAND04G-B.
Please refer to the document for exact specifications by model.

Features

* SUMMARY
* HIGH DENSITY NAND FLASH MEMORIES
* Up to 8 Gbit memory array
* Up to 64Mbit spare area

Applications

* NAND INTERFACE
* x8 or x16 bus width
* Multiplexed Address/ Data
* Pinout compatibility for all densities SUPPLY VOLTAGE
* 1.8V device: VDD = 1.7 to 1.95V
* 3.0V device: VDD = 2.7 to 3.6V PAGE SIZE
* x8 device: (2048 + 64 spare) Bytes
* x16 dev
