NAND01G-A - 128 Mbit / 256 Mbit / 512 Mbit / 1 Gbit (x8/x16) 528 Byte/264 Word Page / 1.8V/3V / NAND Flash Memories

NAND01G-A Description

NAND128-A, NAND256-A NAND512-A, NAND01G-A 128 Mbit, 256 Mbit, 512 Mbit, 1 Gbit (x8/x16) 528 Byte/264 Word Page, 1.8V/3V, NAND Flash Memories .

NAND01G-A Features

* SUMMARY
* HIGH DENSITY NAND FLASH MEMORIES
* Up to 1 Gbit memory array
* Up to 32 Mbit spare area

NAND01G-A Applications

* NAND INTERFACE
* x8 or x16 bus width
* Multiplexed Address/ Data
* Pinout compatibility for all densities SUPPLY VOLTAGE
* 1.8V device: VDD = 1.7 to 1.95V
* 3.0V device: VDD = 2.7 to 3.6V PAGE SIZE
* x8 device: (512 + 16 spare) Bytes
* x16 devi

📥 Download Datasheet

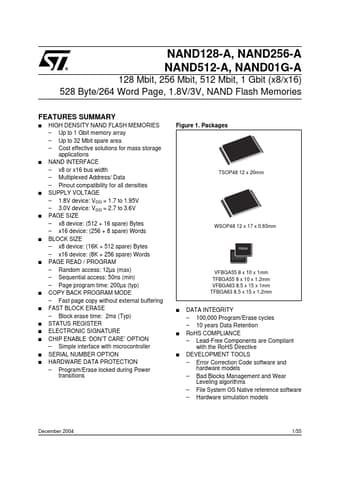

Preview of NAND01G-A PDF
datasheet Preview Page 2 datasheet Preview Page 3
