P60N05 N-CHANNEL Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

STP60N05-14 STP60N06-14 N - CHANNEL ENHANCEMENT MODE POWER MOS TRANSISTOR PRELIMINARY DATA TYPE STP60N05-14 STP60N06-14 V DSS 50 V 60 V R DS(on) < 0.0.

📥 Download Datasheet

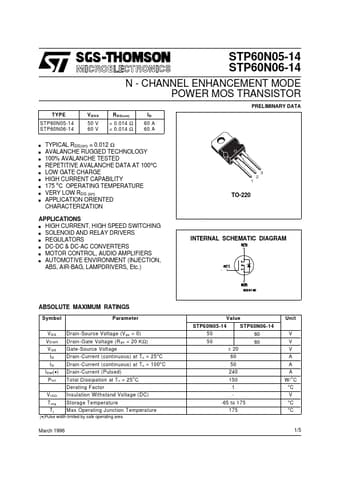

Preview of P60N05 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* HIGH CURRENT, HIGH SPEED SWITCHING s SOLENOID AND RELAY DRIVERS s REGULATORS s DC-DC & DC-AC CONVERTERS s MOTOR CONTROL, AUDIO AMPLIFIERS s AUTOMOTIVE ENVIRONMENT (INJECTION, ABS, AIR-BAG, LAMPDRIVERS, Etc. ) s INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS VDGR V GS ID ID I DM (
