ST1336, ST1335 (ST1335/13361355) 5-Contact Memory Card IC 272-bit EEPROM

ST Microelectronics

Description

ST1335, ST1336 ST1355 5-Contact Memory Card IC 272-bit EEPROM with Advanced Security Mechanisms DATA BRIEFING s s s s s s s s s s 5 V Single Supply.
The members of the ST1335/1336/1355 family are principally designed for use in prepaid Phonecard applications.

📥 Download Datasheet

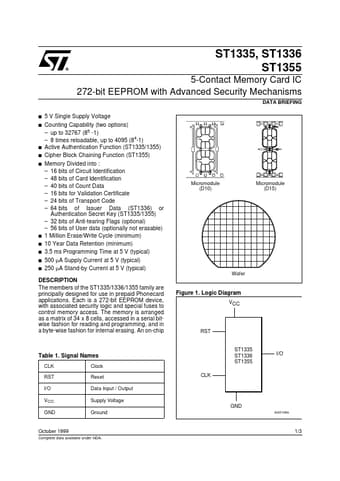

ST1336 Datasheet Preview — This datasheet PDF includes multiple part numbers: ST1336, ST1335. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ST1336, ST1335
Manufacturer: STMicroelectronics ↗
File Size: 36.21 KB
Datasheet: ST1335_STMicroelectronics.pdf
Description: (ST1335/13361355) 5-Contact Memory Card IC 272-bit EEPROM
Note: This datasheet PDF includes multiple part numbers: ST1336, ST1335.
Please refer to the document for exact specifications by model.

Applications

* Each is a 272-bit EEPROM device, with associated security logic and special fuses to control memory access. The memory is arranged as a matrix of 34 x 8 cells, accessed in a serial bitwise fashion for reading and programming, and in a byte-wise fashion for internal erasing. An on-chip Figure 1. Lo
