ST1333 - (ST1331/1333/1353) 6-Contact Memory Card IC 272-bit EEPROM

Download the ST1333 datasheet PDF. This datasheet also covers the ST1331 variant, as both devices belong to the same (st1331/1333/1353) 6-contact memory card ic 272-bit eeprom family and are provided as variant models within a single manufacturer datasheet.

Description

The members of the ST1331/1333/1353 family are principally designed for use in prepaid Phonecard applications.

Each is a 272-bit EEPROM device, with associated security logic and special fuses to control memory access.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ST1331_STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ST1333
Manufacturer STMicroelectronics
File Size 30.21 KB
Description (ST1331/1333/1353) 6-Contact Memory Card IC 272-bit EEPROM
Datasheet download datasheet ST1333 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ST1332 Touch Screen Controller Sitronix
ST13001 NPN Silicon Epitaxial Planar Transistor SEMTECH
ST13003 NPN Silicon Epitaxial Planar Transistor SEMTECH
ST13003D-K High voltage fast-switching NPN power transistor STMicroelectronics
ST13005 NPN Silicon Power Transistors SEMTECH

Other Datasheets by STMicroelectronics

Part Number Description
ST1331 (ST1331/1333/1353) 6-Contact Memory Card IC 272-bit EEPROM
ST1335 (ST1335/13361355) 5-Contact Memory Card IC 272-bit EEPROM
ST1335D (ST1335D / ST1336D / ST1355D) 5-Contact Memory Card IC 272-bit EEPROM
ST1336 (ST1335/13361355) 5-Contact Memory Card IC 272-bit EEPROM
ST1336D (ST1335D / ST1336D / ST1355D) 5-Contact Memory Card IC 272-bit EEPROM

Full PDF Text Transcription

Click to expand full text

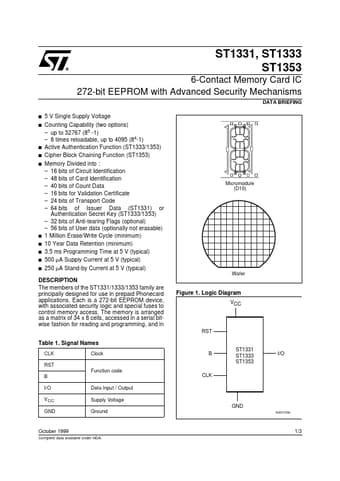

ST1331, ST1333 ST1353 6-Contact Memory Card IC 272-bit EEPROM with Advanced Security Mechanisms DATA BRIEFING s s s s s s s s s s 5 V Single Supply Voltage Counting Capability (two options) – up to 32767 (85 -1) – 8 times reloadable, up to 4095 (84-1) Active Authentication Function (ST1333/1353) Cipher Block Chaining Function (ST1353) Memory Divided into : – 16 bits of Circuit Identification – 48 bits of Card Identification – 40 bits of Count Data – 16 bits for Validation Certificate – 24 bits of Transport Code – 64 bits of Issuer Data (ST1331) or Authentication Secret Key (ST1333/1353) – 32 bits of Anti-tearing Flags (optional) – 56 bits of User data (optionally not erasable) 1 Million Erase/Write Cycle (minimum) 10 Year Data Retention (minimum) 3.
