ST19AF08

Smartcard MCU With 4 additional I/0

ST19AF08 Features

* INCLUDING EEPROM FLASH PROGRAM 8 BIT TIMER WITH INTERRUPT CAPABILITY 2 SERIAL ACCESS, ISO 7816-3 COMPATIBLE 3V ± 10% or 5V ± 10% SUPPLY VOLTAGE POWER SAVING STANDBY MODE CONTACT ASSIGNMENT COMPATIBLE ISO 7816-2 ESD PROTECTION GREATER THAN 5000V s s s 4 Micromodule (D4) 4 s s s s s s s Wafer

ST19AF08 General Description

The ST19AF08, a member of the ST19 device family, is a serial access microcontroller especially designed for very large volume and cost competitive secure portable objects. The ST19AF08 is based on a STMicroelectronics 8 bit CPU core including on-chip memories: 960 Bytes of RAM, 32 K Bytes of USER R.

ST19AF08 Datasheet (26.24 KB)

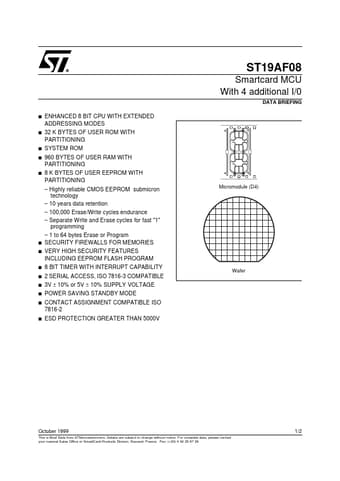

Preview of ST19AF08 PDF

Datasheet Details

Part number:

ST19AF08

Manufacturer:

STMicroelectronics ↗

File Size:

26.24 KB

Description:

Smartcard mcu with 4 additional i/0.
ST19AF08 Smartcard MCU With 4 additional I/0 DATA BRIEFING s ENHANCED 8 BIT CPU WITH EXTENDED ADDRESSING MODES 4 4 s 32 K BYTES OF USER ROM WITH PA.
