ST1938 - DC-DC Step-Up Converter

Datasheet Summary

Description

The ST1938 is a step-up DC/DC converter for white LED driver with over voltage protection.

The device can driver one to four LEDs in series from a single cell Lithium Ion battery.

Internal functions include current limiting; thermal shutdown; OVP and soft-start to prevent damage operate status.

Features

  • z Current Source with Over Voltage Protection z Fast 0.8MHz Switching Frequency z High Efficiency up to 87% z Drives up to Four LEDs From 3.2V Supply z Drives up to Six LEDs From a 5V Supply z Low Quiescent Current z Disconnects LEDs i.

📥 Download Datasheet

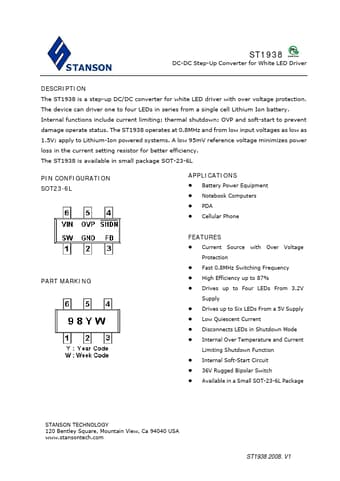

Datasheet preview – ST1938

Datasheet Details

Part number ST1938
Manufacturer STANSON
File Size 121.30 KB
Description DC-DC Step-Up Converter
Datasheet download datasheet ST1938 Datasheet
Additional preview pages of the ST1938 datasheet.

📁 Similar Datasheet

  • ST1900C - PHASE CONTROL THYRISTORS Hockey Puk Version (International Rectifier)
  • ST19AF08 - Smartcard MCU With 4 additional I/0 (ST Microelectronics)
  • ST19CF68 - Smartcard MCU With 512 Bits Modular Arithmetic Processor (ST Microelectronics)
  • ST19GF34 - Smartcard MCU With 34 KBytes EEPROM (ST Microelectronics)
  • ST19KF16 - Smartcard MCU With 1088 Bits Modular Arithmetic Processor (ST Microelectronics)
  • ST19NM34 - Smartcard MCU With 34 Kbytes High Density EEPROM (ST Microelectronics)
  • ST19NR66 - Dual Contactless Smartcard MCU (ST Microelectronics)
  • ST19RF08 - Smartcard MCU With 8176 Bytes EEPROM for Contactless/Contact Applications (ST Microelectronics)
  • ST19SF02 - Smartcard MCU With 2 KBytes of EEPROM (ST Microelectronics)
  • ST19SF04 - Smartcard MCU With 4 KBytes of EEPROM (ST Microelectronics)
Other Datasheets by STANSON
  • ST1937 - DC-DC Step-Up Converter
  • ST13P10 - P-Channel Enhancement Mode MOSFET
  • ST13P10D - P-Channel Enhancement Mode MOSFET
  • ST16N10 - N-Channel Enhancement Mode MOSFET
  • ST18ADN - N-Channel Enhancement Mode MOSFET
  • ST18N10D - N-Channel Enhancement Mode MOSFET

Full PDF Text Transcription

Click to expand full text
ST1938 DC-DC Step-Up Converter for White LED Driver DESCRIPTION The ST1938 is a step-up DC/DC converter for white LED driver with over voltage protection. The device can driver one to four LEDs in series from a single cell Lithium Ion battery. Internal functions include current limiting; thermal shutdown; OVP and soft-start to prevent damage operate status. The ST1938 operates at 0.8MHz and from low input voltages as low as 1.5V; apply to Lithium-Ion powered systems. A low 95mV reference voltage minimizes power loss in the current setting resistor for better efficiency.
