ST24W08 8-Kbit Serial I2C Bus EEPROM

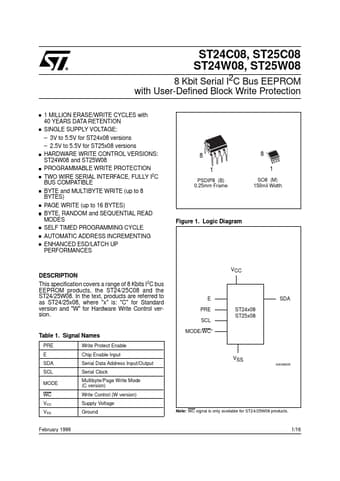

This specification covers a range of 8 Kbits I2C bus EEPROM products, the ST24/25C08 and the ST24/25W08. In the text, products are referred to as ST24/25x08, where "x" is: "C" for Standard version and "W" for Hardware Write Control version. VCC E PRE SCL ST24x08 ST25x08 SDA Table 1. Signal Names.

ST24C08, ST25C08 ST24W08, ST25W08 8 Kbit Serial I2C Bus EEPROM with User-Defined Block Write Protection 1 MILLION ERASE/WRITE CYCLES with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE: 3V to 5.5V for ST24x08 versions 2.5V to 5.5V for ST25x08 versions HARDWARE WRITE CONTROL VERSIONS: ST24W08 and ST25W08 PROGRAMMABLE WRITE PROTECTION TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE BYTE and MULTIBYTE WRITE (up to 8 BYTES) PAGE WRITE (up to 16 BYTES) BYTE, RANDOM and SEQUENTI.

ST24W08 Datasheet (125.54 KB)
