ST2451S5 - 1-Line Uni-directional TVS Diode

Datasheet Summary

Description

The ST2451S5 is a 24V uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line.

📥 Download Datasheet

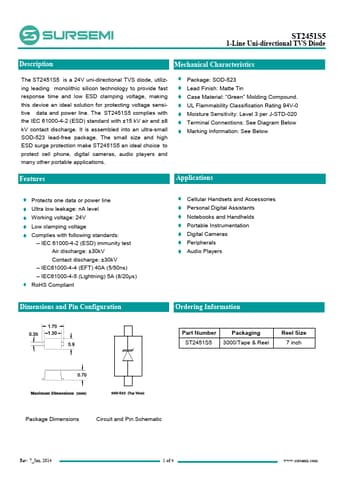

Datasheet preview – ST2451S5

Datasheet Details

Part number ST2451S5
Manufacturer Sursemi
File Size 1.20 MB
Description 1-Line Uni-directional TVS Diode
Datasheet download datasheet ST2451S5 Datasheet
Additional preview pages of the ST2451S5 datasheet.

📁 Similar Datasheet

  • ST2408HI - HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR (ST Microelectronics)
  • ST2411 - Self Drive Piezo Transducer (SOUND COMPONENTS)
  • ST24C01 - SERIAL 1K 128 x 8 EEPROM (ST Microelectronics)
  • ST24C01R - SERIAL 1K 128 x 8 EEPROM (ST Microelectronics)
  • ST24C02 - SERIAL 2K (256 x 8) EEPROM (ST Microelectronics)
  • ST24C04 - 4-Kbit Serial I2C Bus EEPROM (ST Microelectronics)
  • ST24C08 - 8-Kbit Serial I2C Bus EEPROM (ST Microelectronics)
  • ST24C16 - 16 Kbit Serial I2C Bus EEPROM (ST Microelectronics)
  • ST24D12 - DC Control Solid-State Relays (Teledyne)
  • ST24D25 - DC Control Solid-State Relays (Teledyne)
Other Datasheets by Sursemi
  • ST2451D4 - 1-Line Uni-directional TVS Diode

Full PDF Text Transcription

Click to expand full text
ST2451S5 1-Line Uni-directional TVS Diode Description Mechanical Characteristics The ST2451S5 is a 24V uni-directional TVS diode, utilizing leading monolithic silicon technology to provide fast response time and low ESD clamping voltage, making this device an ideal solution for protecting voltage sensitive data and power line. The ST2451S5 complies with the IEC 61000-4-2 (ESD) standard with ±15 kV air and ±8 kV contact discharge. It is assembled into an ultra-small SOD-523 lead-free package. The small size and high ESD surge protection make ST2451S5 an ideal choice to protect cell phone, digital cameras, audio players and many other portable applications. ♦ Package: SOD-523 ♦ Lead Finish: Matte Tin ♦ Case Material: “Green” Molding Compound.
