ST24C16 Datasheet - ST Microelectronics

ST24C16 16 Kbit Serial I2C Bus EEPROM

This specification covers a range of 16 Kbit I2C bus EEPROM products, the ST24/25C16 and the ST24/25W16. In the text, products are referred to as ST24/25x16 where "x" is: "C" for Standard version and "W" for hardware Write Control version. The ST24/25x16 are 16 Kbit electrically erasable programmabl.
ST24C16, ST25C16 ST24W16, ST25W16 16 Kbit Serial I2C Bus EEPROM with User-Defined Block Write Protection 1 MILLION ERASE/WRITE CYCLES, with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE: 4.5V to 5.5V for ST24x16 versions 2.5V to 5.5V for ST25x16 versions HARDWARE WRITE CONTROL VERSIONS: ST24W16 and ST25W16 TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE BYTE and MULTIBYTE WRITE (up to 8 BYTES) for the ST24C16 PAGE WRITE (up to 16 BYTES) BYTE, RANDOM and SEQUENTIAL READ MO.

ST24C16 Datasheet (126.88 KB)

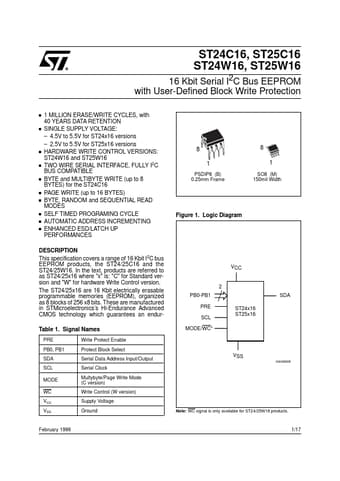

Preview of ST24C16 PDF
ST24C16 Datasheet Preview Page 2 ST24C16 Datasheet Preview Page 3

Datasheet Details

Part number:

ST24C16

Manufacturer:

STMicroelectronics ↗

File Size:

126.88 KB

Description:

16 kbit serial i2c bus eeprom.
