ST24C08, ST25C08 Datasheet - ST Microelectronics

ST24C08 8-Kbit Serial I2C Bus EEPROM

This specification covers a range of 8 Kbits I2C bus EEPROM products, the ST24/25C08 and the ST24/25W08. In the text, products are referred to as ST24/25x08, where "x" is: "C" for Standard version and "W" for Hardware Write Control version. VCC E PRE SCL ST24x08 ST25x08 SDA Table 1. Signal Names.
ST24C08, ST25C08 ST24W08, ST25W08 8 Kbit Serial I2C Bus EEPROM with User-Defined Block Write Protection 1 MILLION ERASE/WRITE CYCLES with 40 YEARS DATA RETENTION SINGLE SUPPLY VOLTAGE: 3V to 5.5V for ST24x08 versions 2.5V to 5.5V for ST25x08 versions HARDWARE WRITE CONTROL VERSIONS: ST24W08 and ST25W08 PROGRAMMABLE WRITE PROTECTION TWO WIRE SERIAL INTERFACE, FULLY I2C BUS COMPATIBLE BYTE and MULTIBYTE WRITE (up to 8 BYTES) PAGE WRITE (up to 16 BYTES) BYTE, RANDOM and SEQUENTI.

ST25C08_STMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: ST24C08, ST25C08. Please refer to the document for exact specifications by model.

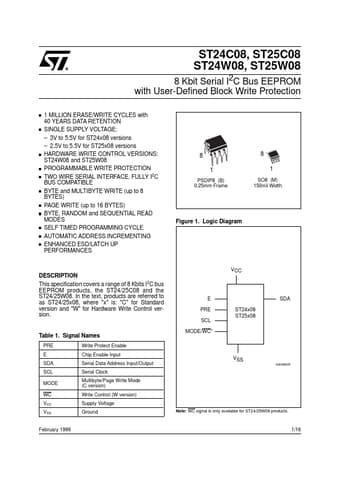

ST24C08 Datasheet Preview Page 2 ST24C08 Datasheet Preview Page 3

Datasheet Details

Part number:

ST24C08, ST25C08

Manufacturer:

STMicroelectronics ↗

File Size:

125.54 KB

Description:

8-kbit serial i2c bus eeprom.

Note:

This datasheet PDF includes multiple part numbers: ST24C08, ST25C08.
Please refer to the document for exact specifications by model.
