ST6380 (ST6380 - ST6389) 8-BIT MCUs WITH ON-SCREEN-DISPLAY FOR TV TUNING

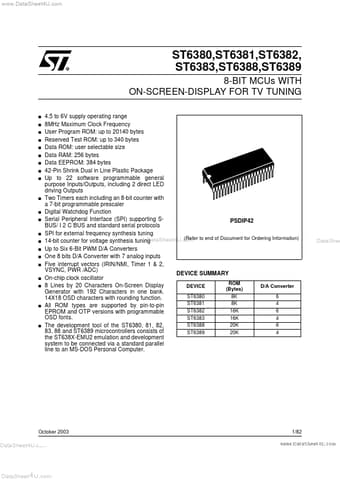

www.DataSheet4U.com ST6380,ST6381,ST6382, ST6383,ST6388,ST6389 8-BIT MCUs WITH ON-SCREEN-DISPLAY FOR TV TUNING s s s s s s s s s s s s s s s s s s s s s 4.5 to 6V supply operating range 8MHz Maximum Clock Frequency User Program ROM: up to 20140 bytes Reserved Test ROM: up to 340 bytes Data ROM: user selectable size Data RAM: 256 bytes Data EEPROM: 384 bytes 42-Pin Shrink Dual in Line Plastic Package Up to 22 software programmable general purpose Inputs/Outputs, including 2 direct LED dri.
