ST6387 8-BIT MCUs WITH ON-SCREEN-DISPLAY FOR TV TUNING

R ST6365,ST6375,ST6385 ST6367,ST6377,ST6387 8-BIT MCUs WITH ON-SCREEN-DISPLAY FOR TV TUNING s s s s s s s s s s s s s s s s s s s s s 4.5 to 6V supply operating range 8MHz Maximum Clock Frequency User Program ROM: up to 20140 bytes Reserved Test ROM: up to 340 bytes Data ROM: user selectable size Data RAM: 256 bytes Data EEPROM: 384 bytes 42-Pin Shrink Dual in Line Plastic Package Up to 22 software programmable general purpose Inputs/Outputs, including 2 direct LED driving Outputs Two T.

ST6387 Datasheet (861.93 KB)

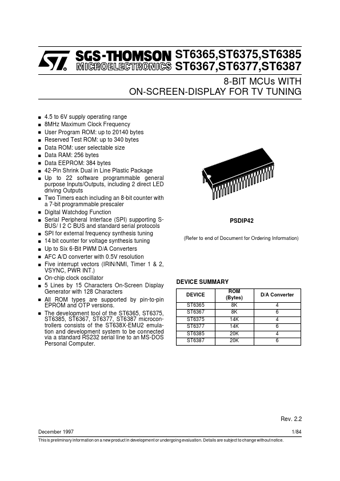

ST6387 Datasheet Preview — Preview of ST6387 PDF

Datasheet Details

Part number:

ST6387

Manufacturer:

STMicroelectronics ↗

File Size:

861.93 KB

Description:

8-bit mcus with on-screen-display for tv tuning.
