ST93C06C, ST93C06 Datasheet - ST Microelectronics

ST93C06C 256 bit 16 x 16 or 32 x 8 SERIAL MICROWIRE EEPROM

The ST93C06 and ST93C06C are 256 bit Electrically Erasable Programmable Memory (EEPROM) fabricated with SGS-THOMSON’s High Endurance Single Polysilicon CMOS technology. In the text the two products are referred to as ST93C06. The memory is divided into either 32 x 8 bit bytes or 16 x 16 bit words. T.

ST93C06 ST93C06C 256 bit (16 x 16 or 32 x 8) SERIAL MICROWIRE EEPROM NOT FOR NEW DESIGN 1 MILLION ERASE/WRITE CYCLES, with 40 YEARS DATA RETENTION DUAL ORGANIZATION: 16 x 16 or 32 x 8 BYTE/WORD and ENTIRE MEMORY PROGRAMMING INSTRUCTIONS SELF-TIMED PROGRAMMING CYCLE with AUTO-ERASE READY/BUSY SIGNAL DURING PROGRAMMING SINGLE 5V ±10% SUPPLY VOLTAGE SEQUENTIAL READ OPERATION 5ms TYPICAL PROGRAMMING TIME ENHANCED ESD/LATCH UP PERFORMANCES for ”C” VERSION ST93C06 and ST93C06C are replaced by the M93.

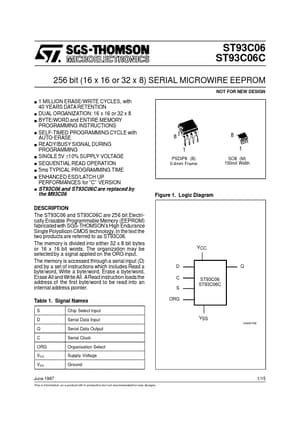

ST93C06_STMicroelectronics.pdf

ST93C06C Datasheet Preview — This datasheet PDF includes multiple part numbers: ST93C06C, ST93C06. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ST93C06C, ST93C06

Manufacturer:

STMicroelectronics ↗

File Size:

118.17 KB

Description:

256 bit 16 x 16 or 32 x 8 serial microwire eeprom.

Note:

This datasheet PDF includes multiple part numbers: ST93C06C, ST93C06.
Please refer to the document for exact specifications by model.
