STC04IE170HV

Emitter Switched Bipolar Transistor

STC04IE170HV Features

* VCS(ON) IC RCS(ON) 0.7 V 4 A 0.17 Ω

* High voltage / high current cascode configuration

* Low equivalent ON resistance

* Very fast-switch: up to 150 kHz

* Squared RBSOA: up to 1700 V

* Very low CISS driven by RG = 47 Ω

* Very low turn-off cross over time Application

STC04IE170HV General Description

The STC04IE170HV is manufactured in monolithic ESBT technology, aimed at providing the best performance in high frequency / high voltage applications. It is designed for use in gate driven based topologies. 1 234 TO247-4L HV Figure 1. Internal schematic diagrams Table 1. Device summary Order code.

STC04IE170HV Datasheet (218.85 KB)

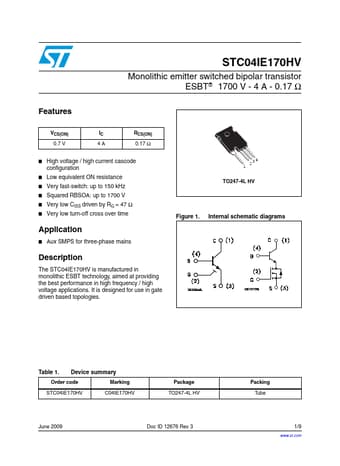

Preview of STC04IE170HV PDF

Datasheet Details

Part number:

STC04IE170HV

Manufacturer:

STMicroelectronics ↗

File Size:

218.85 KB

Description:

Emitter switched bipolar transistor.
