STC08IE120HV Emitter Switched Bipolar Transistor

The STC08IE120HV is manufactured in Monolithic ESBT Technology, aimed to provide best performances in high frequency / high voltage applications. It is designed for use in Gate Driven based topologies. Order codes Part Number STC08IE120HV Marking C08IE120HV Package TO247-4L HV Packaging Tube Janua.

STC08IE120HV Features

* VCS(ON) 0.8 V

* IC 8A RCS(ON) 0.10 W High voltage / high current Cascode configuration Low equivalent on resistance very fast-switch up to 150 kHz Squared RBSOA up to 1200V Very low Ciss driven by RG = 47Ω Very low turn-off cross over time

* 1 23 4 TO247-4L HV

STC08IE120HV Datasheet (291.75 KB)

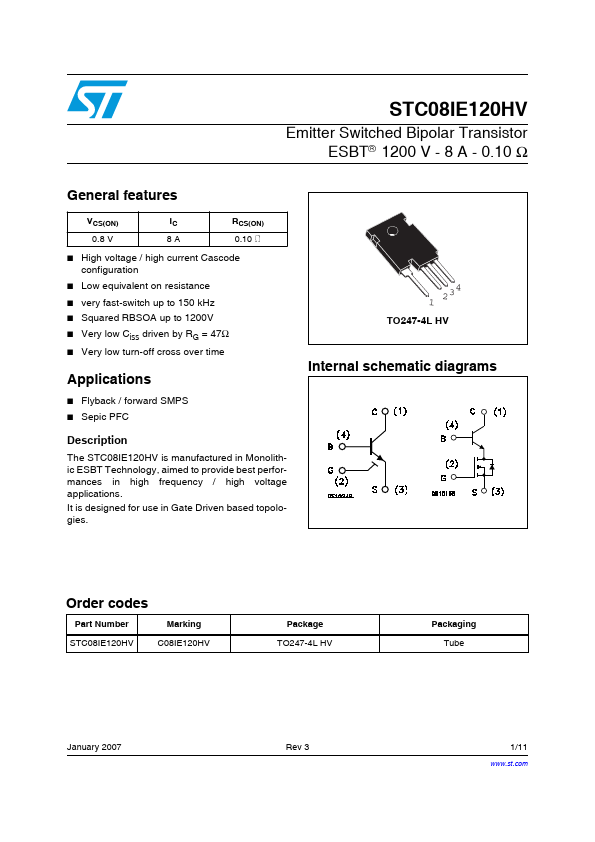

Preview of STC08IE120HV PDF

Datasheet Details

Part number:

STC08IE120HV

Manufacturer:

STMicroelectronics ↗

File Size:

291.75 KB

Description:

Emitter switched bipolar transistor.

📁 Related Datasheet

STC08IE120HP Emitter Switched Bipolar Transistor (ST Microelectronics)

STC08IE150HV Emitter Switched Bipolar Transistor (ST Microelectronics)

STC08DE150 HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR (ST Microelectronics)

STC08DE150 HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR (ST Microelectronics)

STC08DE150HP Hybrid Emitter Switched Bipolar Transistor (ST Microelectronics)

STC08DE150HV HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR (ST Microelectronics)

STC03DE150 HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR (ST Microelectronics)

STC03DE170 HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR (ST Microelectronics)

STC03DE170HP Hybrid emitter switched bipolar transistor (ST Microelectronics)

STC03DE170HV HYBRID EMITTER SWITCHED BIPOLAR TRANSISTOR ESBT (ST Microelectronics)

TAGS

STC08IE120HV Emitter Switched Bipolar Transistor ST Microelectronics

Image Gallery

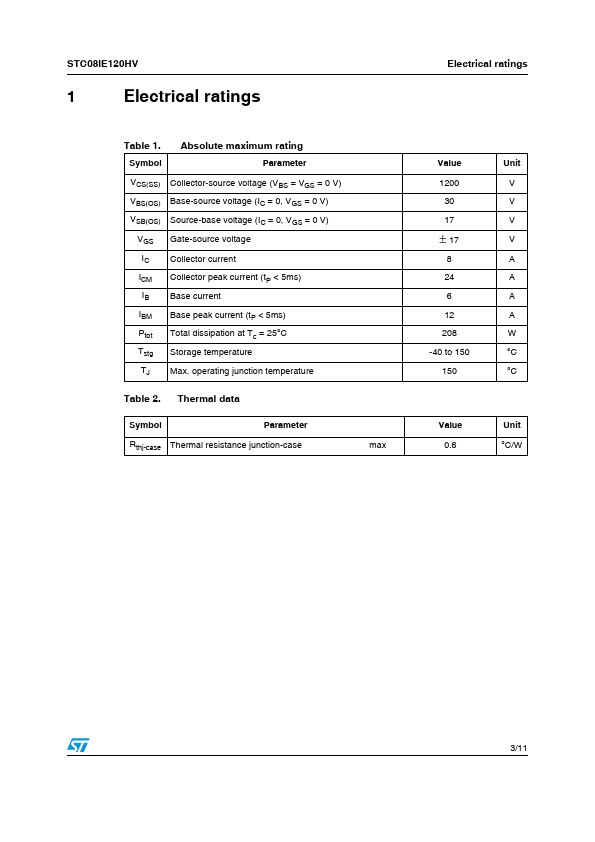

STC08IE120HV Datasheet Preview Page 2 STC08IE120HV Datasheet Preview Page 3
