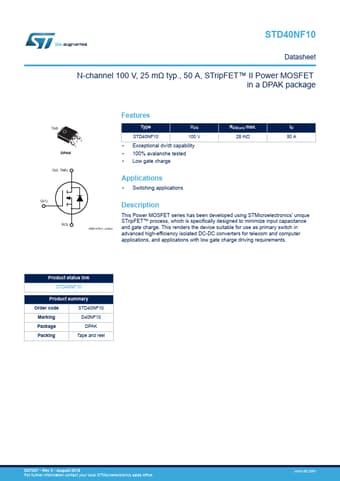

STD40NF10 Datasheet | STMicroelectronics

features Type STD40NF10 - - VDSS 100V RDS(on) < 0.028Ω ID 50A 100% avalanche tested Exceptional dv/dt capability 3 1 Description This Power MOSFET is the latest development of STMicroelectronics unique 'single feature size™” strip-based process, The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility. DPAK Internal schematic diagram Applications - Switching application Order codes Part number STD40NF10 Marking D40NF10 Package DPAK Packaging Tape & reel October 2006 Rev 1 1/11 .st. 11 This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice. Data Sheet 4 U . .. Contents Contents 1 2 3 4 5 6 Electrical ratings - - - - - - - - . . . . 3 Electrical characteristics - - - - - - - . . 5 Test circuit 7 Package mechanical data - - - - - - - . . 8 Packaging mechanical data -...
