STP55NF06 - N-CHANNEL POWER MOSFET

Description

These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.

Features

  • Order code STB55NF06 STP55NF06 STP55NF06FP VDSS RDS(on) max. ID 60 V < 0.018 Ω 50 A 50 A (1) 1. Refer to soa for the max allowable current value on FP-type due to Rth value.
  • 100% avalanche tested.
  • Exceptional dv/dt capability.

📥 Download Datasheet

📁 Similar Datasheet

  • STP55NF06 - N-Channel MOSFET (INCHANGE)
  • STP5011D - MBus Modules (Sun Microsystems)
  • STP50N65DM6 - N-Channel MOSFET (STMicroelectronics)
  • STP50NF25 - N-CHANNEL POWER MOSFET (STMicroelectronics)
  • STP57N65M5 - N-channel Power MOSFET (STMicroelectronics)
  • STP57N65M5 - N-Channel MOSFET (INCHANGE)
  • STP5950 - P-Channel Enhancement Mode MOSFET (STANSON)
  • STP5N105K5 - N-channel Power MOSFET (STMicroelectronics)
  • STP5N120 - N-Channel Power MOSFET (STMicroelectronics)
  • STP5N60M2 - N-channel Power MOSFET (STMicroelectronics)
Other Datasheets by ST Microelectronics
  • STP55NF06FP - N-CHANNEL POWER MOSFET
  • STP55NF06L - N-Channel Power MOSFET
  • STP55NF06LFP - N-Channel Power MOSFET
  • STP55NF03L - N-Channel MOSFET
  • STP55NF03L - N-CHANNEL 30V - 0.01 W - 55A TO-220/D2PAK/I2PAK STripFET II POWER MOSFET
  • STP55N06L - N-CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTOR
  • STP55N06LFI - N-CHANNEL ENHANCEMENT MODE LOW THRESHOLD POWER MOS TRANSISTOR
  • STP55NE06 - N - CHANNEL ENHANCEMENT MODE SINGLE FEATURE SIZE POWER MOSFET

Full PDF Text Transcription

Click to expand full text

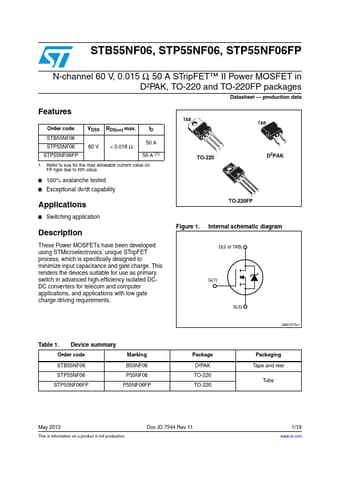

STB55NF06, STP55NF06, STP55NF06FP N-channel 60 V, 0.015 Ω, 50 A STripFET™ II Power MOSFET in D²PAK, TO-220 and TO-220FP packages Datasheet — production data Features Order code STB55NF06 STP55NF06 STP55NF06FP VDSS RDS(on) max. ID 60 V < 0.018 Ω 50 A 50 A (1) 1. Refer to soa for the max allowable current value on FP-type due to Rth value ■ 100% avalanche tested ■ Exceptional dv/dt capability Applications ■ Switching application Description These Power MOSFETs have been developed using STMicroelectronics’ unique STripFET process, which is specifically designed to minimize input capacitance and gate charge.
