STP9NB50FP, STP9NB50 PowerMesh MOSFET

ST Microelectronics

Description

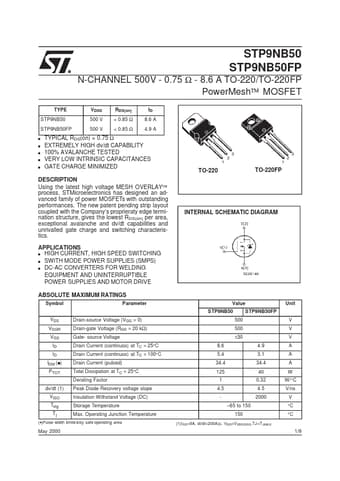

N-CHANNEL 500V - 0.75 Ω - 8.6 A TO-220/TO-220FP PowerMesh™ MOSFET TYPE STP9NB50 STP9NB50FP s s s s s STP9NB50 STP9NB50FP VDSS 500 V 500 V RDS(on) <.
Using the latest high voltage MESH OVERLAY™ process, STMicroelectronics has designed an advanced family of power MOSFETs with outstanding performances.

📥 Download Datasheet

STP9NB50FP Datasheet Preview — This datasheet PDF includes multiple part numbers: STP9NB50FP, STP9NB50. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STP9NB50FP, STP9NB50
Manufacturer: STMicroelectronics ↗
File Size: 108.42 KB
Datasheet: STP9NB50_STMicroelectronics.pdf
Description: PowerMesh MOSFET
Note: This datasheet PDF includes multiple part numbers: STP9NB50FP, STP9NB50.
Please refer to the document for exact specifications by model.

Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVE ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID ID IDM (q) PTOT dv/dt (1) VISO Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-ga
