STPS6045 Datasheet, Rectifier, ST Microelectronics

STPS6045 Features

  • Rectifier
  • Very small conduction losses
  • Negligible switching losses
  • Extreme fast switching
  • Low thermal resistance
  • Avalanche capability specified

PDF File Details

Part number:

STPS6045

Manufacturer:

STMicroelectronics ↗

File Size:

246.07kb

Download:

📄 Datasheet

Description:

Power schottky rectifier. Dual center tap Schottky rectifier suited for switch mode power supply and high frequency DC to DC converters. Packaged in TO-247, th

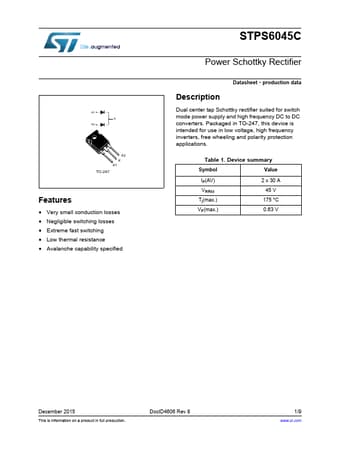

Datasheet Preview: STPS6045 📥 Download PDF (246.07kb)
Page 2 of STPS6045 Page 3 of STPS6045

STPS6045 Application

  • Applications Table 1. Device summary Symbol Value IF(AV) VRRM Tj(max.) VF(max.) 2 x 30 A 45 V 175 °C 0.63 V December 2015 This is information
