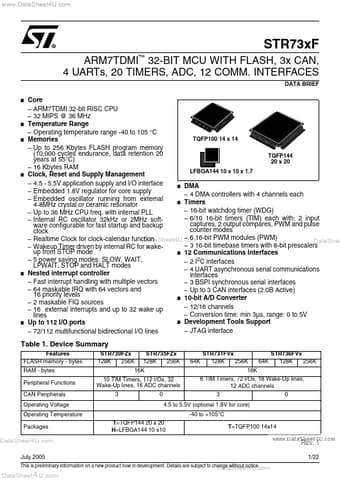

Preview of STR730F PDF
STR730F Datasheet Preview Page 2 STR730F Datasheet Preview Page 3

Datasheet Details

Part number:

STR730F

Manufacturer:

STMicroelectronics ↗

File Size:

664.66 KB

Description:

(str73xf) 12 communications interfaces.

STR730F, (STR73xF) 12 COMMUNICATIONS INTERFACES

and ordering Information.

For complete information on the Mechanical and Electrical Device Characteristics please refer to the Preliminary Datasheet.

For complete information on the STR73xF Microcontroller memory, registers and peripherals.

please refer to the STR73x Reference Manual.

For informatio

www.DataSheet4U.com STR73xF ARM7TDMI™ 32-BIT MCU WITH FLASH, 3x CAN, 4 UARTs, 20 TIMERS, ADC, 12 COMM.

INTERFACES DATA BRIEF Core ARM7TDMI 32-bit RISC CPU 32 MIPS @ 36 MHz Temperature Range Operating temperature range -40 to 105 °C TQFP100 14 x 14 Memories Up to 256 Kbytes FLASH program memory (10,000 cycles endurance, data retention 20 TQFP144 years at 55°C) 20 x 20 16 Kbytes RAM LFBGA144 10 x 10 x 1.7

STR730F Features

* FLASH memory - bytes RAM - bytes Peripheral Functions CAN Peripherals Operating Voltage Operating Temperature Packages T=TQFP144 20 x 20 H=LFBGA144 10 x10 STR730FZx 128K 256K STR735FZx 128K 256K 64K STR731FVx 128K 256K 16K 6 TIM Timers, 72 I/Os, 18 Wake-Up lines, 12 ADC channels 3 4.5 to 5.5V (optio
