STR91XF, Flash MCU

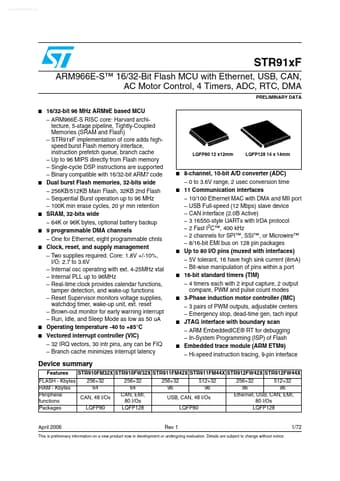

www.DataSheet4U.com STR91xF ARM966E-S™ 16/32-Bit Flash MCU with Ethernet, USB, CAN, AC Motor Control, 4 Timers, ADC, RTC, DMA PRELIMINARY DATA 16/32-bit 96 MHz ARM9E based MCU ARM966E-S RISC core: Harvard architecture, 5-stage pipeline, Tightly-Coupled Memories (SRAM and Flash) STR91xF implementation of core adds highspeed burst Flash memory interface, instruction prefetch queue, branch cache Up to 96 MIPS directly from Flash memory Single-cycle D

STR91XF Features

* STR910FM32X STR910FW32X STR911FM42X STR911FM44X STR912FW42X STR912FW44X 256+32 64 CAN, EMI, 80 I/Os LQFP128 256+32 96 512+32 96 256+32 512+32 96 96 Ethernet, USB, CAN, EMI, 80 I/Os LQFP128 FLASH - Kbytes 256+32 RAM - Kbytes 64 Peripheral CAN, 48 I/Os functions Packages LQFP80 USB, CAN, 48 I/Os LQFP
