STTA1206G (STTA1206xx) TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

TURBOSWITCH, family, drastically cuts losses in both the diode and the associated switching IGBT or MOSFET in all “freewheel mode” operations and is particularly suitable and efficient in motor control freewheel applications and in booster ABSOLUTE RATINGS (limiting values) Symbol VRRM VRSM IF(RMS) .

STTA1206G Features

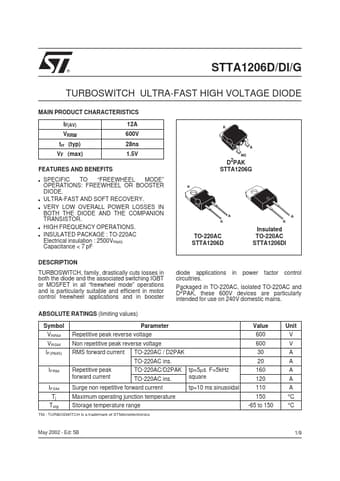

* s 12A 600V 28ns 1.5V K A NC D2PAK STTA1206G K s s s s SPECIFIC TO “FREEWHEEL MODE” OPERATIONS: FREEWHEEL OR BOOSTER DIODE. ULTRA-FAST AND SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY OPERATIONS. INSULATED PACKAGE : TO-220AC Elec

STTA1206D_STMicroelectronics.pdf

STTA1206G Datasheet Preview — This datasheet PDF includes multiple part numbers: STTA1206G, STTA1206D. Please refer to the document for exact specifications by model.
