STTA1512P Datasheet, Diode, ST Microelectronics

✔ STTA1512P Features

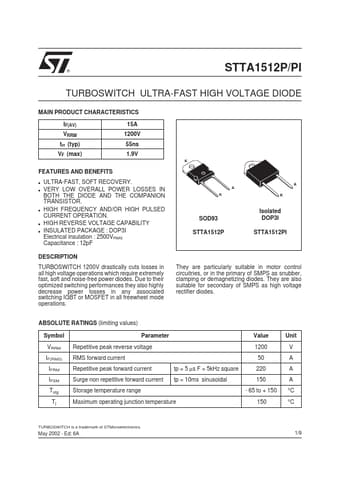

s 15A 1200V 55ns 1.9V K s s s s ULTRA-FAST, SOFT RECOVERY. VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR. HIGH FREQUENCY AND/OR HIGH

✔ STTA1512P Application

(Fig A to D),the way of calculating the power losses is given below : TOTAL LOSSES due to the diode P = P1+

PDF File Details

ST Microelectronics manufacturer logo

Part number:

STTA1512P

Manufacturer:

STMicroelectronics ↗

File Size:

214.99kb

Download:

📄 Datasheet

Description:

Turboswitch e ultra-fast high voltage diode. TURBOSWITCH 1200V drastically cuts losses in all high voltage operations which require extremely fast, soft and noise-free power diod

📥 Download PDF (214.99kb)

Rating: 1 ★ (2 votes)
