STTA3006TV2, STTA3006P TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE

ST Microelectronics

Description

® STTA3006P/PI STTA6006TV1/2 TURBOSWITCH ™ ULTRA-FAST HIGH VOLTAGE DIODE MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM trr (typ) VF (max) .
The TURBOSWITCH is a very high performance series of ultra-fast high voltage power diodes from 600V to 1200V.

📥 Download Datasheet

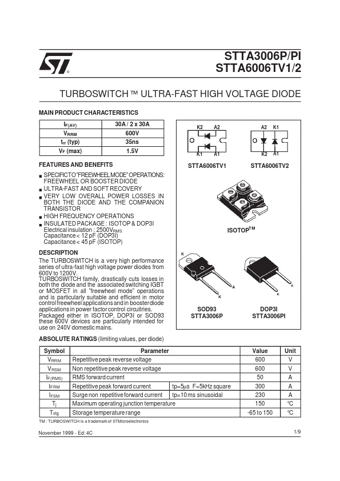

STTA3006TV2 Datasheet Preview — This datasheet PDF includes multiple part numbers: STTA3006TV2, STTA3006P. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STTA3006TV2, STTA3006P
Manufacturer: STMicroelectronics ↗
File Size: 82.14 KB
Datasheet: STTA3006P_STMicroelectronics.pdf
Description: TURBOSWITCH ULTRA-FAST HIGH VOLTAGE DIODE
Note: This datasheet PDF includes multiple part numbers: STTA3006TV2, STTA3006P.
Please refer to the document for exact specifications by model.

Features

* SPECIFICTO”FREEWHEELMODE”OPERATIONS: FREEWHEEL OR BOOSTER DIODE ULTRA-FAST AND SOFT RECOVERY VERY LOW OVERALL POWER LOSSES IN BOTH THE DIODE AND THE COMPANION TRANSISTOR HIGH FREQUENCY OPERATIONS INSULATED PACKAGE : ISOTOP & DOP3I Electrical insulation : 2500VRMS Capacitance < 12 pF (DOP3I) Capacita

Applications

* and in boosterdiode applications in power factor control circuitries. Packaged either in ISOTOP, DOP3I or SOD93 these 600V devices are particularly intended for use on 240V domestic mains. ABSOLUTE RATINGS (limiting values, per diode) Symbol VRRM VRSM IF(RMS) IFRM IFSM Tj T stg Parameter Repetitive
