STW43NM60ND

Power MOSFETs

ST Microelectronics

STW43NM60ND Features

* Type STW43NM60ND

* VDSS @ TJMAX 650 V RDS(on) max < 0.095 Ω ID 35 A The worldwide best RDS(on)

* area amongst the fast recovery diode devices 2 3 100% avalanche tested Low input capacitance and gate charge Low gate input resistance Extremely high dv/dt and avalanc

STW43NM60ND General Description

The FDmesh™ II series belongs to the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a new vertical structure to the company's strip layout and associates all advantages of reduced onresistance and fast switching with an intrinsic fastrecovery body diode.It is the.

STW43NM60ND Datasheet (190.16 KB)

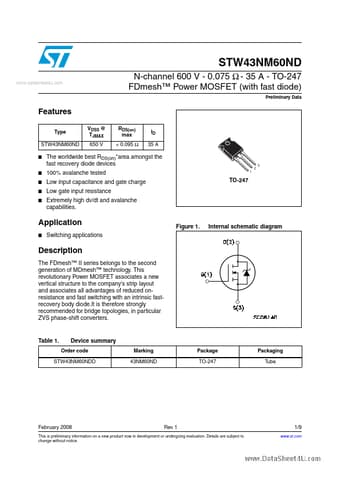

STW43NM60ND Datasheet Preview — Preview of STW43NM60ND PDF

Datasheet Details

Part number:

STW43NM60ND

Manufacturer:

STMicroelectronics ↗

File Size:

190.16 KB

Description:

Power mosfets.
