STW40N60M2 - N-CHANNEL MOSFET

STMicroelectronics

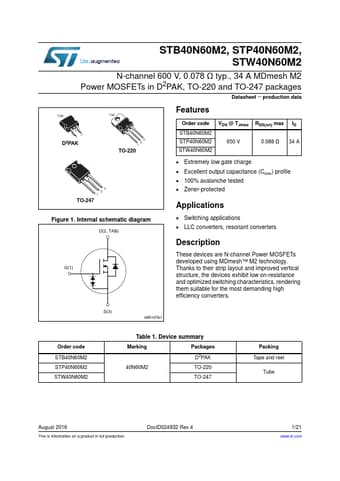

STW40N60M2 Datasheet Preview — Preview of STW40N60M2 PDF

Datasheet Details

Part number	STW40N60M2
Manufacturer	STMicroelectronics ↗
File Size	1.05 MB
Description	N-CHANNEL MOSFET
Datasheet	STW40N60M2-STMicroelectronics.pdf

STW40N60M2 Product details

Description

6 AM01476v1 These devices are N-channel Power MOSFETs developed using a new generation of MDmesh™ technology: MDmesh II Plus™ low Qg.These revolutionary Power MOSFETs associate a vertical structure to the company's strip layout to yield one of the world's lowest on-resistance and gate charge.They are therefore suitable for the most demanding high efficiency converters.Order codes STB40N60M2 STP40N60M2 STW40N60M2 Table 1. Device summary Marking Package 2 D PAK 40N60M2 TO-

Features

Order codes VDS @ TJmax RDS(on) max ID STB40N60M2 STP40N60M2 650 V 0.088 Ω 34 A STW40N60M2.
Extremely low gate charge.
Lower RDS(on) x area vs previous generation.
Low gate input resistance.
100% avalanche tested.
Zener-protected Figure 1. Internal schematic diagram '7$%.
