TDA7220 DUAL LOW-VOLTAGE POWER AMPLIFIER

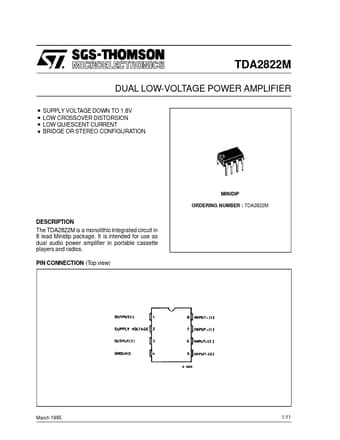

The TDA2822M is a monolithic integrated circuit in 8 lead Minidip package. It is intended for use as dual audio power amplifier in portable cassette players and radios. PIN CONNECTION (Top view) March 1995 1/11 TDA2822M SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol Vs Io Ptot Tstg, Tj Supply.
