TDA7222A Datasheet - ST Microelectronics

TDA7222A 3V AM/FM ONE-CHIP RADIO

TDA7222Aand TDA7222AD are AM/FM chip tuner ICs, which are designed for portable radios and 3V headphone radios. PIN CONNECTIONS TDA7222A (SDIP24) SO28 (Plastic Micropackage) ORDER CODE : TDA7222AD TDA7222AD (SO28) FM RF IN GND1 FM MIX AM MIX AGC VCC2 AM IF IN FM IF IN GND2 TUN LED ST LED QUAD 1 .

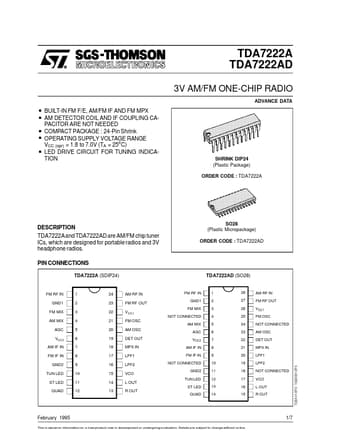

TDA7222A_STMicroelectronics.pdf

Preview of TDA7222A PDF
TDA7222A Datasheet Preview Page 2 TDA7222A Datasheet Preview Page 3

Datasheet Details

Part number:

TDA7222A

Manufacturer:

STMicroelectronics ↗

File Size:

289.64 KB

Description:

3v am/fm one-chip radio.
