TDA7402

CARRADIO SIGNAL PROCESSOR

ST Microelectronics

TDA7402 Features

* Input Multiplexer 2 fully differential CD stereo inputs with programmable attenuation 1 single-ended stereo input 2 differential mono input 1 single-ended mono input In-Gain 0..15dB, 1dB steps internal Offset-cancellation (AutoZero) separate second source-selector Beep Mixing stage Loudness interna

TDA7402 General Description

The device includes a high performance audioprocessor and a stereodecoder-noiseblanker combination with the whole low frequency signal processing necessary for state-of-the-art as well as future carradios. The digital control allows a programming in a wide range of all the filter characteristics. Al.

TDA7402 Datasheet (512.42 KB)

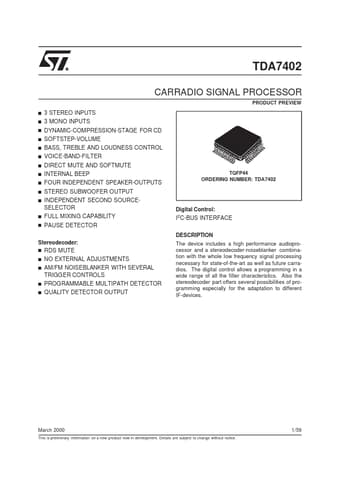

TDA7402 Datasheet Preview — Preview of TDA7402 PDF

Datasheet Details

Part number:

TDA7402

Manufacturer:

STMicroelectronics ↗

File Size:

512.42 KB

Description:

Carradio signal processor.
TDA7402 CARRADIO SIGNAL PROCESSOR PRODUCT PREVIEW s s s s s s s s s s s 3 STEREO INPUTS 3 MONO INPUTS DYNAMIC-COMPRESSION-STAGE FOR CD SOFTSTEP-VOLUM.
